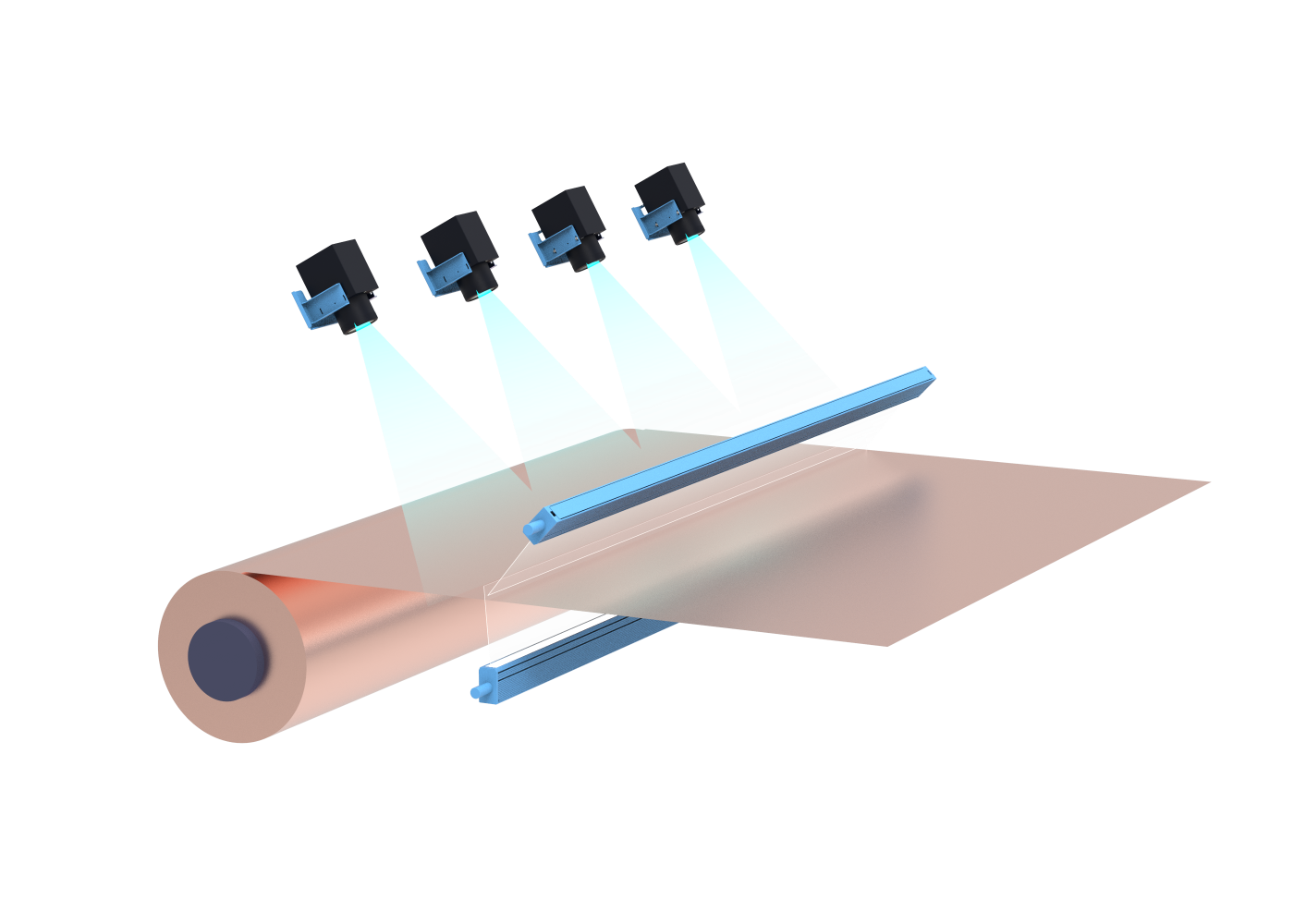

Copper-Foil Surface Defect Inline Inspection System

Copper-Foil Surface Defect Inline Inspection System

Leveraging self-developed high-speed cameras, multi-angle LED illumination, and AI vision algorithms, the system achieves 0.01 mm resolution for detecting nodules, pinholes, bright/dark spots, oxidation marks, scratches, and folds. It supports real-time report generation, defect mapping, and grading analysis, transmitting via 1 GigE / 10 GigE networks. Applied to slitting, surface-treatment, and CCL production lines, it enhances copper-foil quality uniformity and production efficiency.

AI Algorithms

AI Algorithms

Intelligent Camera

Intelligent Camera

Defect Recognition

Defect Recognition

Real-Time Analysis

Real-Time Analysis

Performance Parameters

Serial Number Project Parameter Indicators
1 Scanning speed

100–400 mm/s, freely adjustable

2 Scanning speed-2

100–400 mm/s, freely adjustable-2

3 Scanning speed-3

100–400 mm/s, freely adjustable-3
