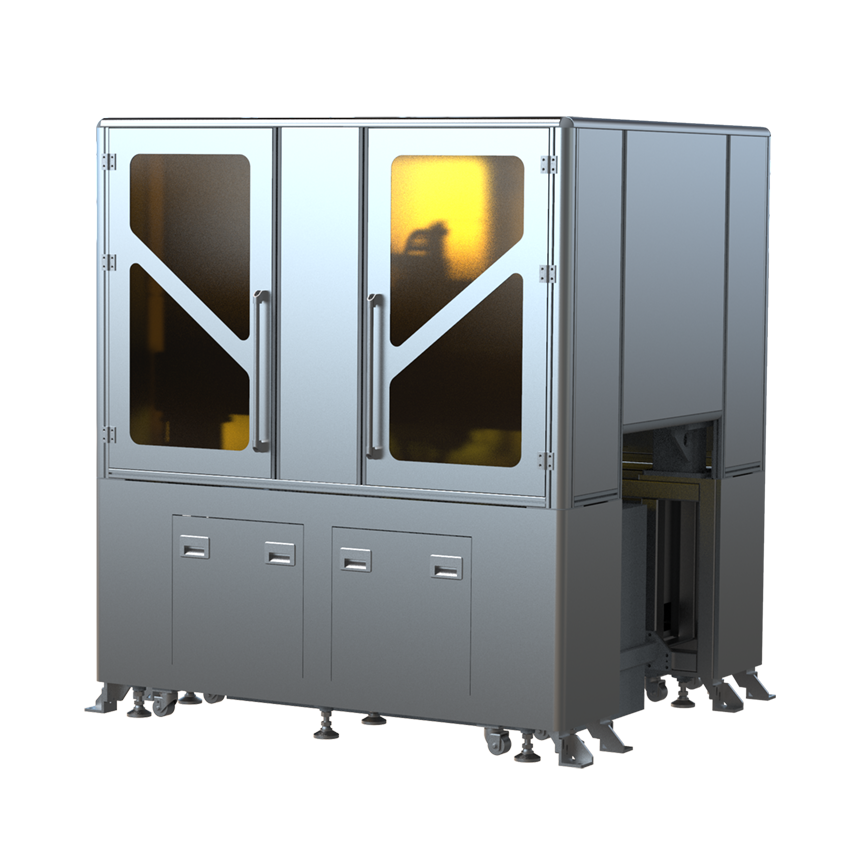

Shuangyuan Technology developed a 3D laser and contact displacement–based dimensional inspection system for pre-weld module measurement. It provides comprehensive analysis of length, width, height, flatness, hole position, and inclination angle. The system employs an orthogonal robotic arm for multi-axis automated scanning of multi-face Pack modules, achieving 0.5 μm repeatability with the laser sensor and 1 μm precision for the contact probe. The platform automatically compares measured data with CAD reference dimensions, generating real-time deviation maps for pre-weld dimensional prediction, process monitoring, and closed-loop equipment control. It is ideal for full-dimension quality management in module assembly lines.
