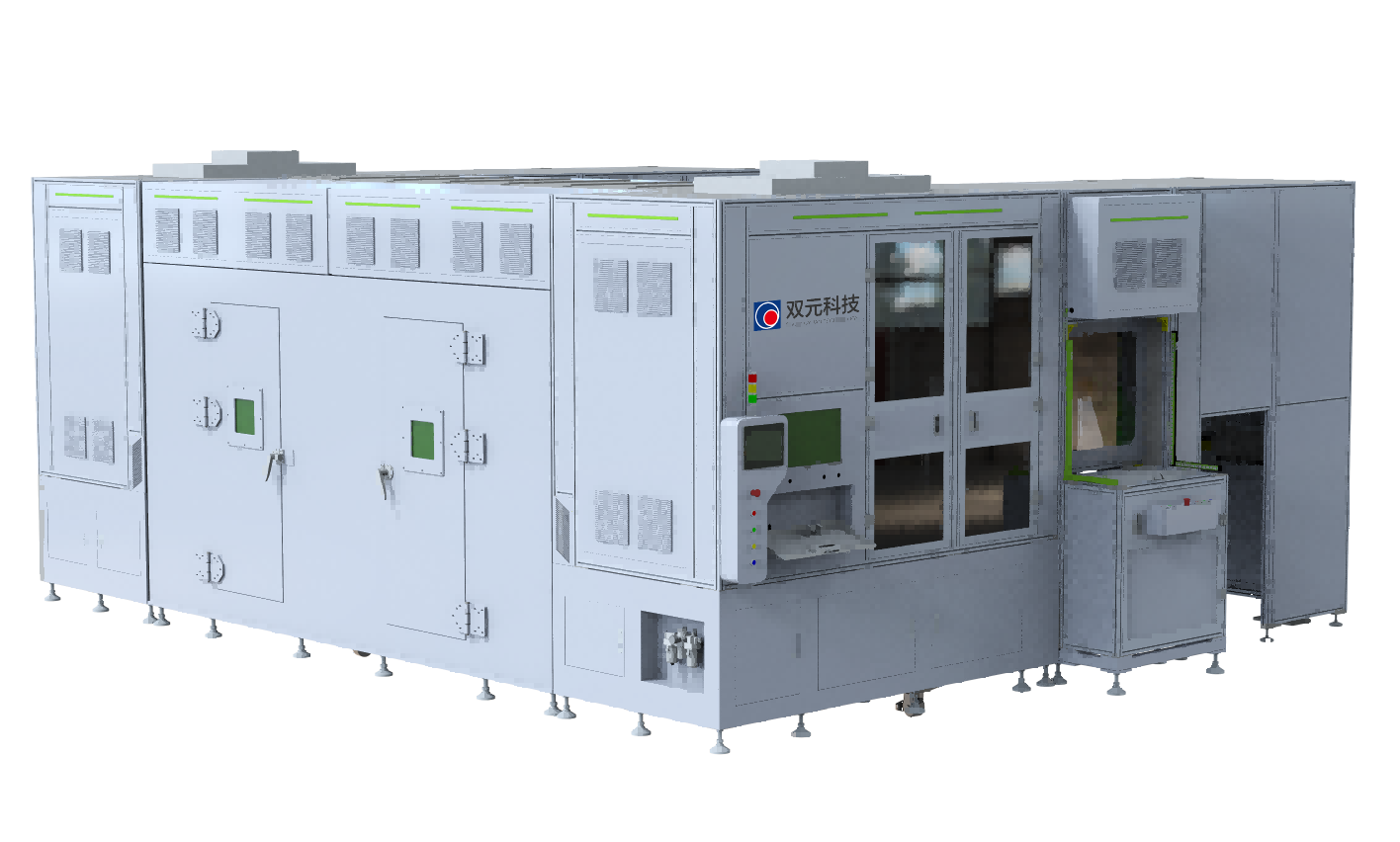

X-ray Inline Inspection of Al-Shell Battery Electrode Tabs (Fully Automatic)
Based on high-precision X-ray scanning and AI image recognition, this system conducts inline non-destructive inspection of wound lithium-ion cells, detecting internal misalignment, delamination, edge warping, and foreign-object intrusion. Equipped with a 90–150 kV variable micro-focus X-ray source, it adapts to materials of different densities and thicknesses, achieving ± 50 µm image resolution, 0 % missed-defect rate, and < 0.5 % false-alarm rate. It can be linked with labeling and rejection units to achieve 100 % inspection and automatic NG removal. The compact, shielded design ensures safety and efficiency, making it ideal for mid- and post-winding quality control.
X-ray Inspection
AI Recognition
Defect Detection
Cell Inspection
